Environmental Water Quality Monitoring Buoy Station
- Product Code: CARE_Sensor_WQ002
- Availability: In Stock
$15,400.00

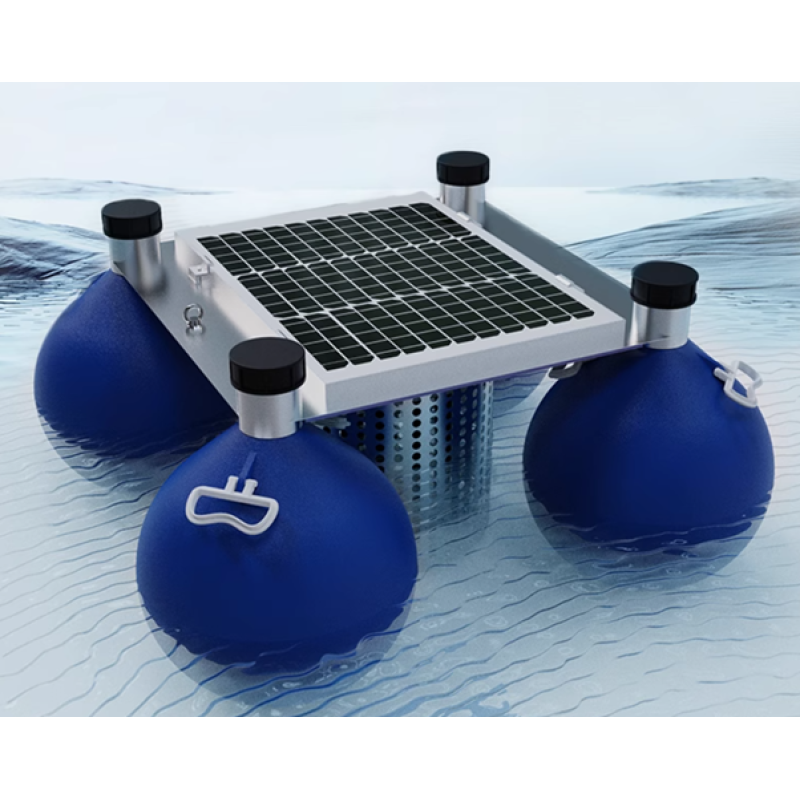

Water Quality Monitoring Buoy Station
Main Parameters of Optional Sensors
|
Sensor Type |
Range |
Principle |
Accuracy |
|
Temperature |
0~50°C |
High-precision digital sensor |
±0.3°C |
|
pH |
0~14 (pH) |
Electrochemical (salt bridge) |
±0.1 pH |
|
Dissolved Oxygen |
0~20 mg/L |
Fluorescence lifetime method |
±2% |
|
Conductivity |
0~5000 µS/cm |
Contact electrode method |
±1.5% |
|
Turbidity (optional) |
0~40 NTU |
Scattered light method |
±1% |
|
ORP |
-1500 mV ~ 1500 mV |
Electrochemical (salt bridge) |
±6 mV |
|
Ammonia Nitrogen |
1~100 mg/L |
Ion-selective electrode method |
±5 mg |
Key Features
- Supports real-time multi-parameter online monitoring and battery power monitoring.
- Enables cloud platform data monitoring, data transmission, storage, and alert functions.
- Wireless data transmission is supported.
- Peak power consumption: 5W;
- Sensor power consumption: approx. 0.25W each.

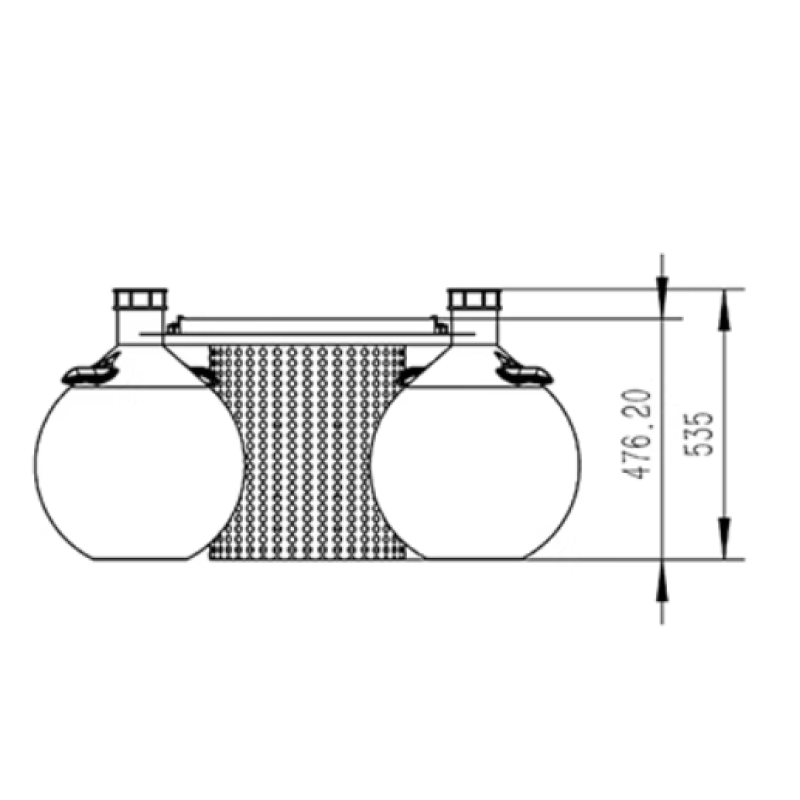

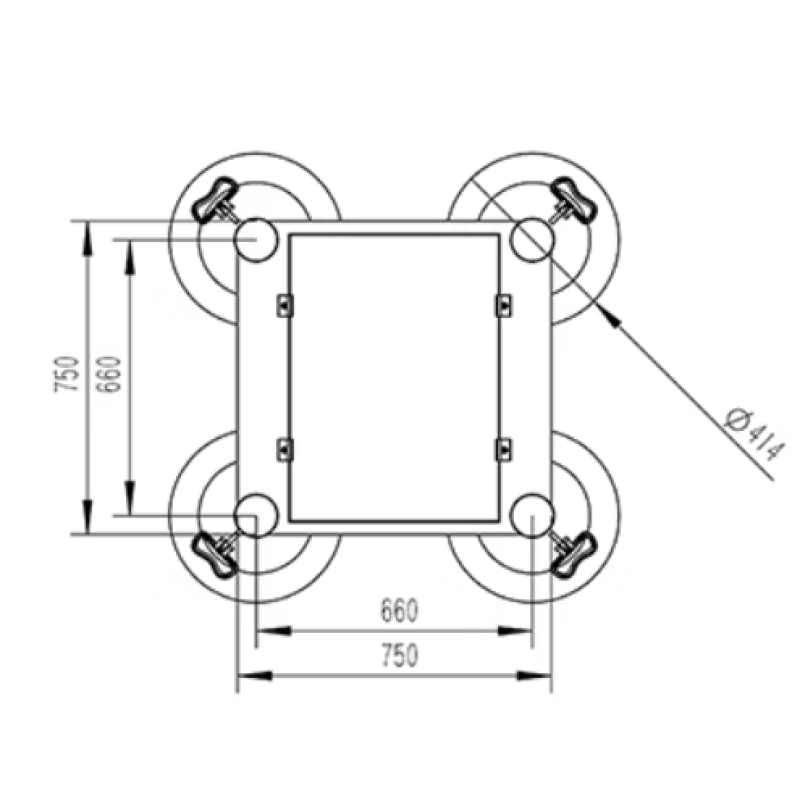

- Dimensions: 750mm × 750mm × 535mm
- Buoy diameter: 414mm
- Weight: 22kg
Data Acquisition Module
Data Collection
Stable operation, anti-interference; supports multi-channel RS485 / MODBUS-RTU slave devices
Data Output
1x RS485 / JSON protocol output
Battery
Lithium battery 12VDC, 20AH (default)
Solar Panel
22.1V / 50W (default)
Power Supply Capacity
Customizable model; continuous operation for over 5 days in overcast/rainy conditions
Optional Positioning Features
Warning light, GPS positioning
Monitoring Platform
Cloud platform; accessible via mobile phone or PC
Protection
304 stainless steel filter tube for sensor protection
Buoy Body
Diameter 414mm spherical buoy ×4, made from engineering plastic
Strong Anti-Interference Capability
Made with engineering plastic for the buoy and marker body.
Equipped with a 304 stainless steel filter for protection, with excellent resistance to impact and damage.

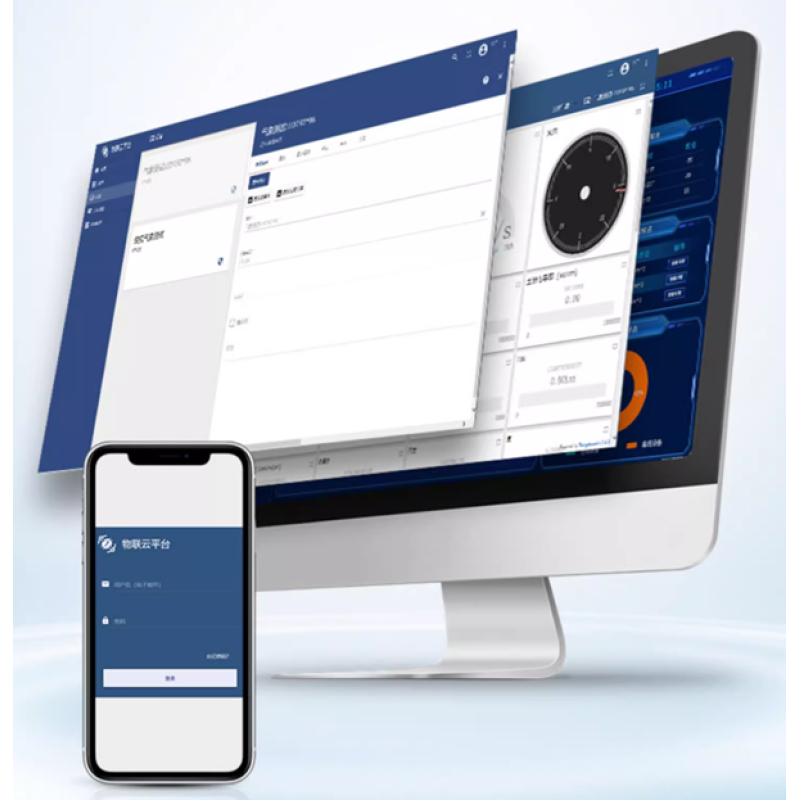

Integrated with Cloud Platform
Real-Time Data Viewing
Monitoring data from the device is transmitted to the cloud platform in real time, enhancing the timeliness of environmental data feedback.
Wireless Transmission Diagram
The data acquisition instrument features data collection, a real-time clock, timed data storage,
parameter configuration, and supports standard 2G/4G (GPRS) communication functions.
