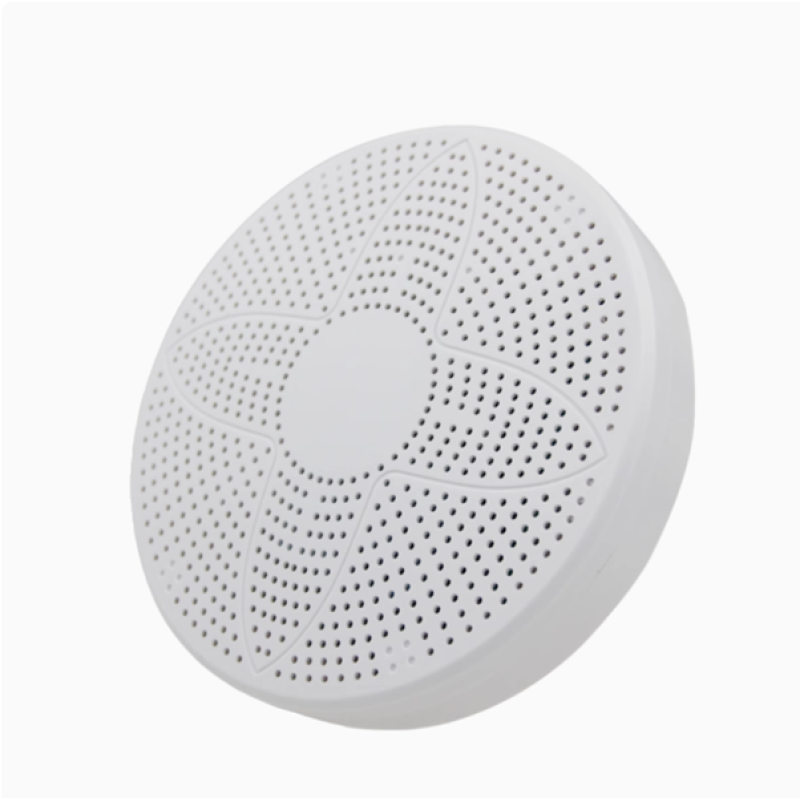

Multi-Functional Air Quality Detector
Detected Parameters
- PM2.5, PM10, Temperature, Humidity,
- Carbon Dioxide (CO₂), Carbon Monoxide (CO),
- Formaldehyde (HCHO), TVOC,
- Oxygen (O₂), Hydrogen Sulfide (H₂S),
- Ammonia (NH₃), Methane (CH₄),
- Atmospheric Pressure, Ozone (O₃),
- Noise, Smoke/Fog, Odors
Features
- Accurate measurement
- Good air permeability
- Multi-parameter detection
- Stable performance
- Customizable combinations
Application Scenarios
Smart public restrooms · Buildings · Offices · Aged care · Shopping malls · Residential homes
Product Parameters
- Power Supply Voltage: DC 9–24V
- Recommended Voltage: DC 12V
- Power Consumption: >500mA (at DC 12V)
- Communication Response Time: < 1 second
- Communication Interfaces: RS485, RS232, Ethernet, 4G, WiFi, LoRa, IO
- Communication Protocols: Modbus / MQTT / TCPIP
- Operating Temperature: -10°C to 60°C
- Storage Temperature: -20°C to 60°C
Multiple Signal Output Options
Meets the Requirements of Various Scenarios
Wired Communication:
- RS485
- RS232
- Ethernet Port
- IO
Wireless Communication:
- 4G
- WiFi
- LoRa
