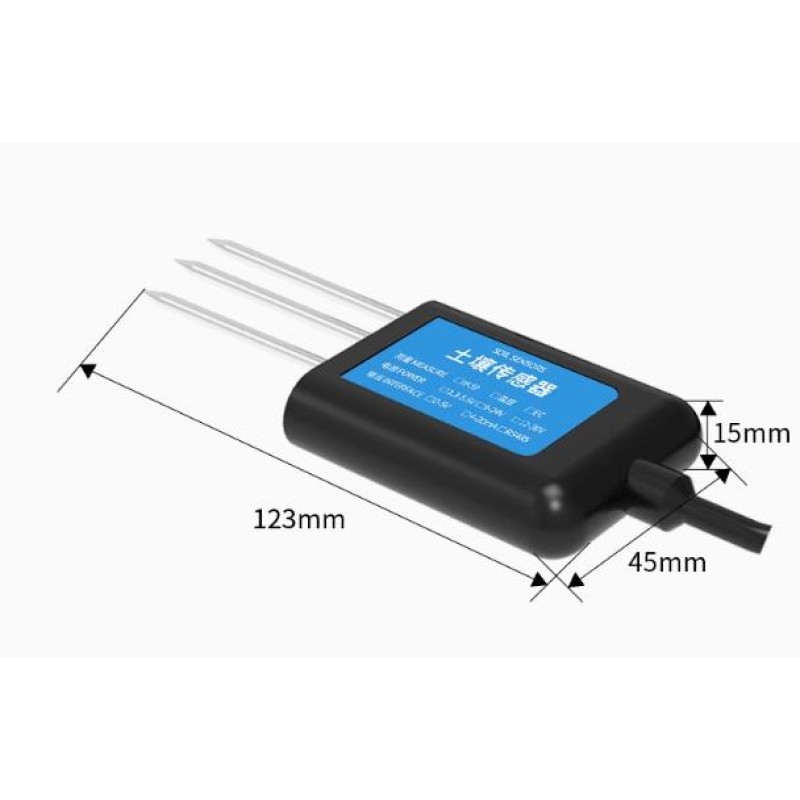

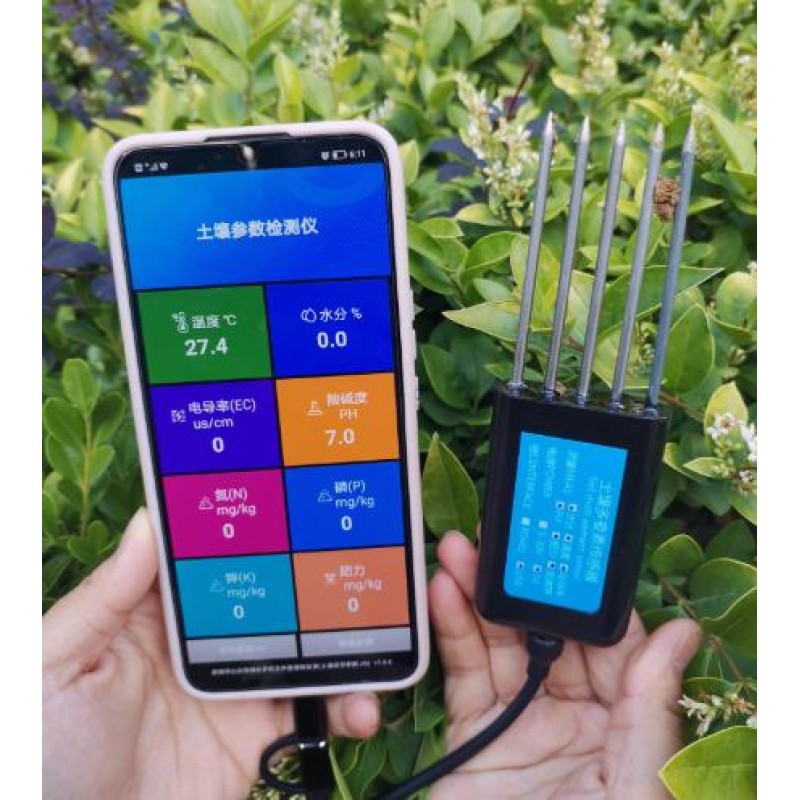

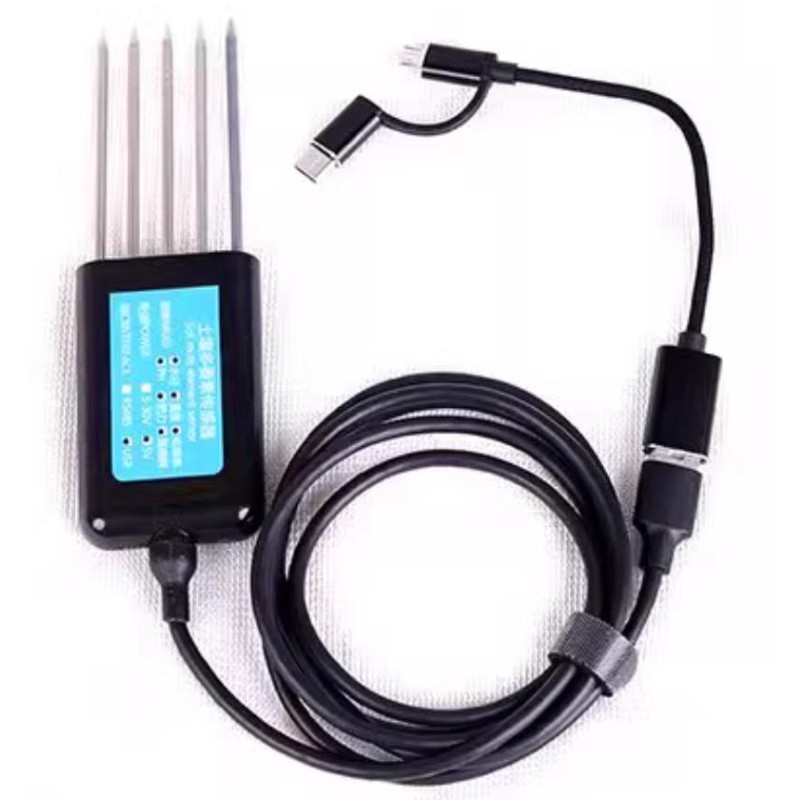

Handheld Soil Tester – Portable Analyzer for Nitrogen (N), Phosphorus (P), Potassium (K), Temperature, Nutrients, Moisture (Capacitive), and pH
- Product Code: CARE_Sensor_Soil002
- Availability: In Stock
$598.00
Handheld Soil Tester – Portable Analyzer for Nitrogen (N), Phosphorus (P), Potassium (K), Temperature, Nutrients, Moisture (Capacitive), and pH
Specification
|
Parameter |
Measurement Range |
|
Temperature |
-30 to 70°C |
|
Moisture |
0 to 100% |
|
Electrical Conductivity (EC) |
0–2000 µS/cm, 0–10000 µS/cm, 0–20000 µS/cm |
|
pH |
3 to 10 |
|
Salinity |
0–2000 µS/cm, 0–10000 µS/cm, 0–20000 µS/cm |
|
Nitrogen / Phosphorus / Potassium (N/P/K) |
0 to 1999 mg/kg |
Measurement Precision
- Temperature: ±0.2°C
- Moisture: ±2%
- EC: ±2%
- pH: ±1
- Salinity: ±2%
- N/P/K: ±3% (mg/kg)
Resolution
- Temperature: 0.1°C
- Moisture: 0.1%
- EC: 1 µS/cm
- pH: 0.01
- Salinity: 1 µS/cm
- N/P/K: 1 mg/kg
Signal Output
- RS485 (Standard Modbus-RTU protocol, default device address: 01)
Power Supply
- 5–24V DC
Operating Environment
- Temperature: -30°C to +70°C
Response & Stabilization Time
- Stabilization Time: <1 second
- Response Time: <1 second
