Constant temperature;
Automatic dry nitrogen blowing instrument;
Air blow drying instrument
|
Item |
Specification |
|
Heating Holes |
12 holes |
|
Hole Depth |
45 mm |
|
Gas Source |
Air |
|
Diameter |
20.0 mm |
|
Heating Range |
Room Temperature – 100°C |
|
Temperature Error |
≤ ±0.5°C |
|
Flow Rate |
0–36 L/min |
|
Max Power |
250 W |
|
Dimensions |
320 × 220 × 250 mm |
Control Panel
- Heating switch
- Airflow switch
- Temperature control panel
- One-touch start
Temperature Controller
- Thermostat meter
- Digital temperature display

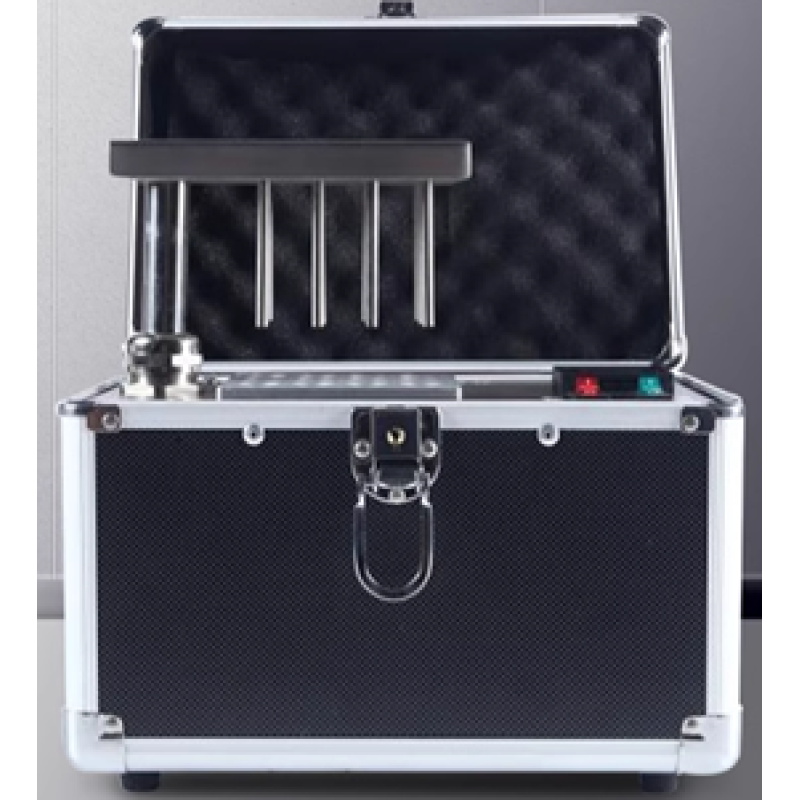

Alloy Handle Box-Style Design
- Convenient and portable
- Ready to use instantly

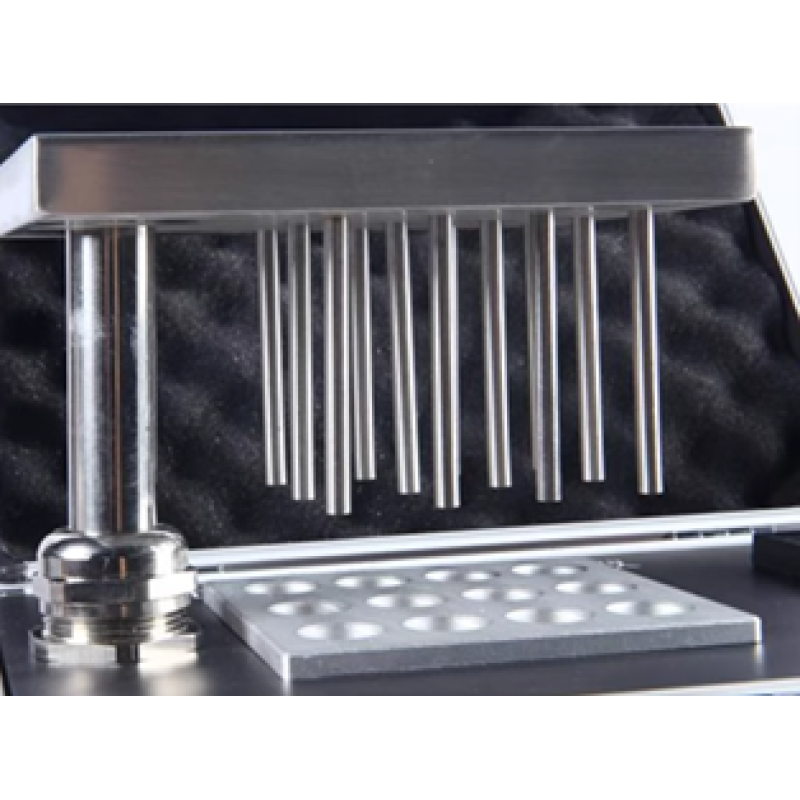

Stainless Steel Air Nozzle
- Air outlet and test tube holes
- Made of stainless steel
- Durable, corrosion-resistant
- Height adjustable as needed
Instructions for Use:
- Open the portable case, check if the device is intact, and connect the power.
- Adjust the height of the support so that the tip is about 1 cm above the sample liquid surface.
- Set the temperature according to the instructions in the electronic module manual, then turn on the heating switch.
- Once the temperature reaches the set value, remove the support and place the test tube containing the solution to be concentrated into the sample chamber. Adjust the position of the air outlet so it is about 1 cm above the liquid surface in the test tube.
- Turn on the air source switch and press the air blow button.
- After the sample is concentrated, turn off the heating and air blow switches, and remove the test tube.
- Wait for the sample chamber temperature to drop to room temperature, then return the device to its original storage state.
